0.2-3.0mm de linea de corte longitudinal

 The Equipment used in steel mill, sheet steel dealer, steel sheet distribution center, etc. producing the coil skelps which are the main material for pipes and cases of home appliance, etc.

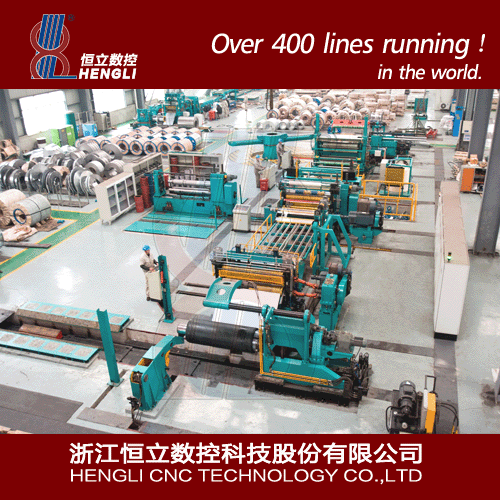

The equipment is used for slitting the coils of cold rolled steel, galvanized steel, stainless steel, coated steel and etc. The machine slits the big coil to some small coils to suit for customer's different requirement. It is combined with uncoiler, feeder, cropping cutter, loop, slitter, rewinder, tension device, recoiler and etc. All the key components are using international brands.

NO.	Model	Thickness (mm）	Coil width (mm）	Coil weight (T）	Speed (m/min)	Power (Kw)
1	ZJL650-20	0.2-2.0	150-650	6	0-160	120
2	ZJL850-20	0.2-2.0	150-850	8	0-160	150
3	ZJL1350-20	0.2-2.0	300-1350	15	0-200	220
4	ZJL1650-20	0.2-2.0	400-1650	20	0-200	220
5	ZJL1350-30	0.3-3.0	300-1350	20	0-200	220
6	ZJL1650-30	0.3-3.0	400-1650	25	0-200	300
7	ZJL1850-30	0.3-3.0	500-1800	25	0-200	350
