0.2-1.0mm de linea de corte longitudinal

Name & Model

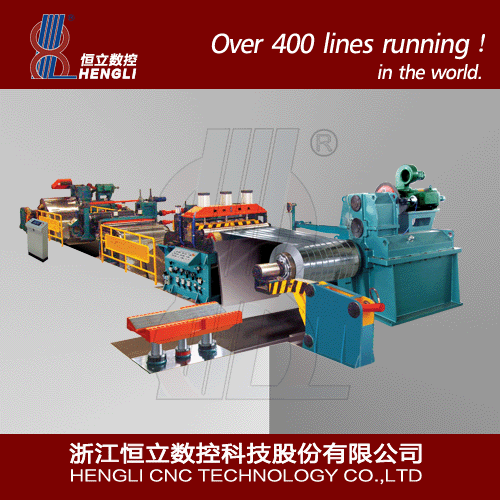

HL-ZJ1250-120 slitting line

Use

For accurately slitting silicon-steel, tinplate, strip steel and aluminum strip.

Characteristics

German Siemens PLC control, Japanese YUKEN brand hydraulic components.

Technical parameters

1）Slitting thickness: 0.2-0.5mm

2）Max slitting width: 1250mm

3）Max uncoiling weight: 10T

4）Uncoiling O.D.: ≤1600mm

5）Uncoiling I.D.: 480-520mm

6）Slitter mandrel diameter: 180mm

7）Slitting quantity: 30 strips (thickness 0.50mm)

8）Slitting width: ≥30mm

9）Recoiling weight: ≤10T

10）Recoiling I.D: 508mm

11）Slitting parallel tolerance: 0.05mm/m

12）Burr: ≤3% of the strip thickness, but not less than 0.02mm.

13）Slitting width tolerance:0.05mm

14）Speed regulation method:DC

15）Speed：10-120m/min

16）Total consumption：150Kw

17）Land occupation：20×8m

18）Other performance：All hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, Strip end crop, Side collector.

19）Unique design：Touch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
