0.2-0.5mm de linea de corte longitudinal

Name & Model

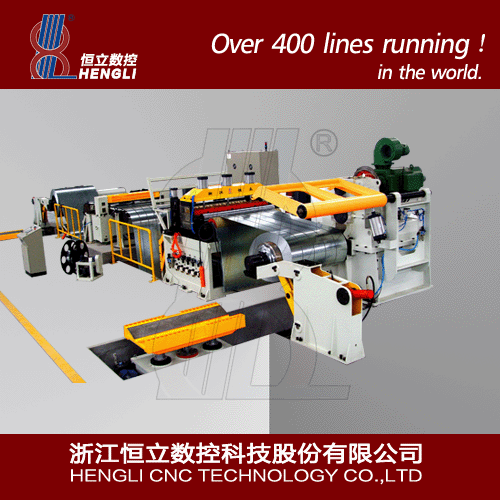

HL-ZJ1250-90A slitting line

Use

For accurately slitting silicon-steel, strip steel and aluminum strip.

Characteristics

German Siemens PLC control, Japanese YUKEN brand hydraulic components, Carbide knives.

Technical parameters

1）Slitting thickness：0.2-0.5mm

2）Max slitting width：1250mm

3）Max uncoiling weight：10T

4）Uncoiling O.D.：1400mm

5）Uncoiling I.D.：385-450mm / 480-520mm

6）Slitter mandrel diameter：120mm

7）Slitting quantity：15 strips

8）Slitting width：≥71mm

9）Recoiling weight：≤10T

10）Recoiling I.D.：508mm

11) Slitting parallel tolerance：0.05mm/m

12）Burr：≤0.02mm

13）Slitting width tolerance：0.05mm

14）Speed regulation method：DC, frequency control

15）Speed：10-90m/min

16）Total consumption：90Kw

17）Land occupation：16×7m

18）Other performance：All hydraulic driven, Proper circle recoiling, Pneumatic-expansion type strip tightener, With high-precision knife grinder, Side collector.

19）Unique design：Touch screen operation, Siemens PLC control, Whole ling automatic running, On-line adjust slitting width, Adjust knife without removing shaft, On-line grinding.
