HL-1200BS6 linea de corte de desplazamiento
HL-1200BS6 linea de corte de desplazamiento
| Categoría | linea de corte de desplazamiento de hojalata y aluminio |
|---|---|
| Modelo | HL-1200BS6 |
| Tiempo de Actualización | 2025/3/14 |

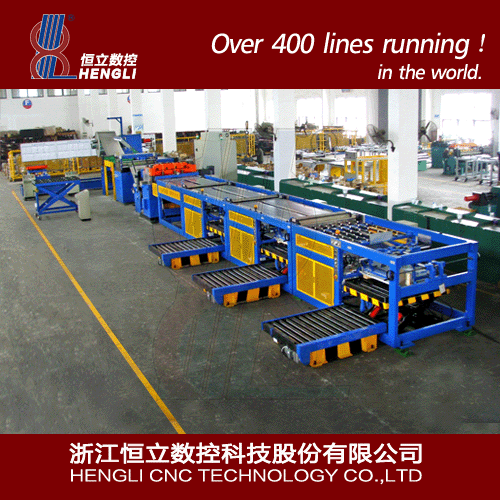

The maximum speed of the model is 150 SPM. The model is composed of uncoiler, flattener, quick change cutter, stackers and etc. The line is using new model uncoiler, the complete line is on the ground without any foundation work. The line also equipped the quick change system. It makes the complicate and difficult change scroll die to be easier. You only need 10 minutes to change a scroll die. It is suitable for the customer who prefer high efficiency.
|
Name & Model |
HL1200BS6 digital-controlled scroll cutting device |
|
Use |
For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost. |
|
Electric control |
The electric control components use whole set of Mitsubishi control system. |
|
Material |
Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material |
|
Die set |
Straight die / Scroll die |
|
Shear type |
Feed-to-stop |
|
Technical parameters |
1）Sheet width range：500-1200mm |
|
2）Sheet thickness range：0.125-0.525mm | |
|
3）Sheet length range：500-1200mm | |
|
4）Max coil weight：13.5 T | |
|
5）Nominal coil I.D.：420mm | |
|
6）Mandrel expansion range：390-440mm | |
|
7）Coil O.D.：915-1800mm | |
|
8）Max line speed：120m/min | |
|
9）Max cutting strokes：150 SPM | |
|
10) Max bundle weight：2100kg | |
|
11) Max bundle height：460mm (Including stander) | |
|
12）Length tolerance range：≤±0.15mm | |
|
13）Diagonal tolerance range：≤±0.18/1000mm | |
|
14）Power consumption：about 115kw | |
|
15）Air consumption：about 1m3/min |
