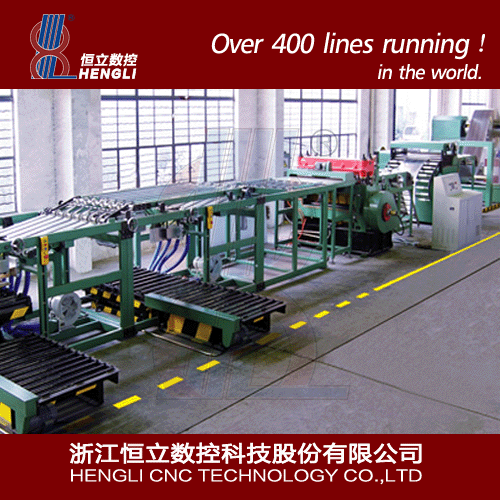

HL-1200BS3 linea de corte de desplazamiento

Name & Model

HL1200BS3 digital-controlled scroll cutting device

Use

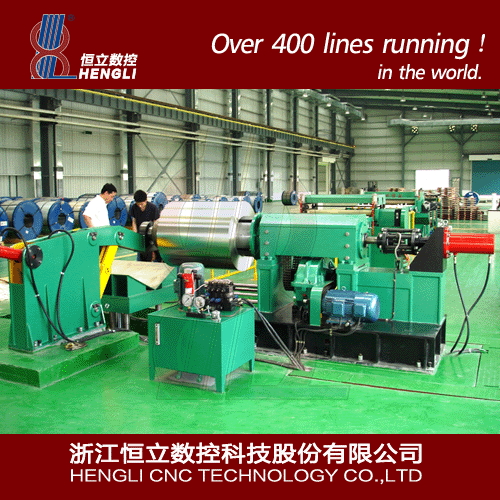

For uncoiling, straightening, high-precise scroll cutting and stacking tinplate or aluminum. It is an important device for can-making or metal-printing companies to reduce tinplate loss and producing cost.

Electric control

The electric control components use whole set of Mitsubishi control system.

Material

Tinplate, Blackplate, TFS and Aluminum in tempers normally associated with standard can making material

Die set

Straight die / Scroll die

Shear type

Feed-to-stop

Technical parameters

1）Sheet width range：500-1200mm

2）Sheet thickness range：0.125-0.525mm

3）Sheet length range：500-1200mm

4）Max coil weight：12T

5）Nominal coil I.D.：420mm

6）Mandrel expansion range：385-445mm

7）Coil O.D.：915-1700mm

8）Max line speed：56m/min

9）Max cutting strokes：70 SPM

10) Max bundle weight：2100kg

11) Max bundle height：460mm (Including stander)

12）Length tolerance range：≤±0.15mm

13）Diagonal tolerance range：≤±0.18/1000mm

14）Power consumption：about 38kw

15）Air consumption：about 1m³/min
