Slitter

Name & Model

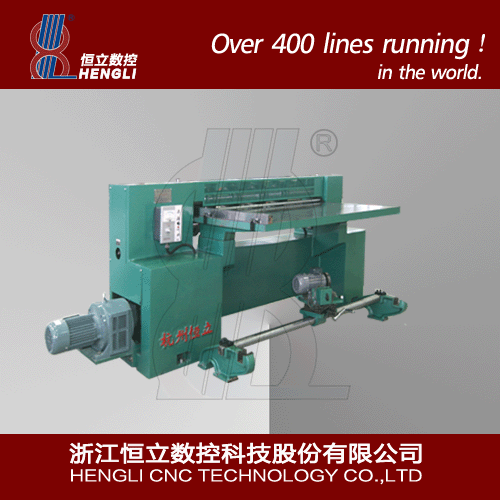

GT1A Slitter

Use

For silicon-steel and tinplate slitting.

Characteristics

It is selectable to choose speed-regulation type or none speed-regulation type. And also selectable to use carbide knife or Cr12 knife.

Technical parameters

1）Max sheet thickness：0.5mm

2）Max sheet width：1250mm

3）Slitter shaft diameter：100mm

4）Slitting width：71-1250mm

5）Slitting parallel tolerance：0.05mm/m

6）Burr：≤0.02mm

7）Running speed：10-60m/min ( Speed-regulation type)

74m/min ( None speed-regulation type)

8）Consumption：1.8Kw

9）Weight：about 1.5T
